Sun Jan 15, 2023 13 Projections for 2023 (Part 1)
A collection of projections for political world maps
(see Intro for further explanations)
January: Canters W32/UA PP (non-optimized)
| Canters W32/UA PP (non-optimized) | |
|---|---|
| Creator | Frank Canters, Tobias Jung (2022 / 2002) |
| Group | Lenticular |
| Property | Compromise |
| Other Names |
|
| Remarks | An umbezifferte (renumbered), aphylactic (= compromise) pointed-pole variant of Canters W32. Not optimized for low distortion values. |

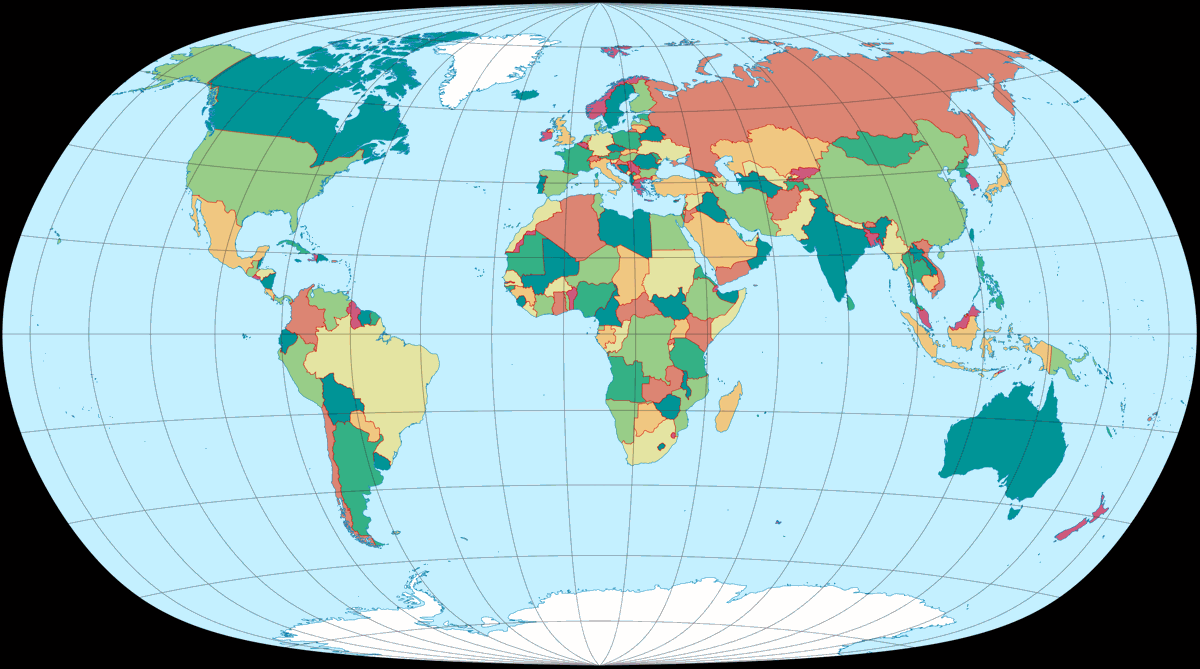

The January sheet shows, as I already announced,
the only one of my own experiments in the 2023 calendar.
I like the aphylactic lenticular pointed-pole
Györffy F
very much – but (again) I feel that its amount of areal inflation
is a bit too high.
So I was wondering if I could come up with a projection that has a roughly similar shape but less inflation, and tried to apply Umbeziffern[1] on the Canters W32. The areal inflation was set to 1.35 at 60°N/S, the bounding meridian to 160°, and the aspect ratio of the main axes to 1:1.64. Using the Böhm notation, this would be the Canters W32 90-160-60-35-160. And indeed I arrived at a quite similar outer shape:

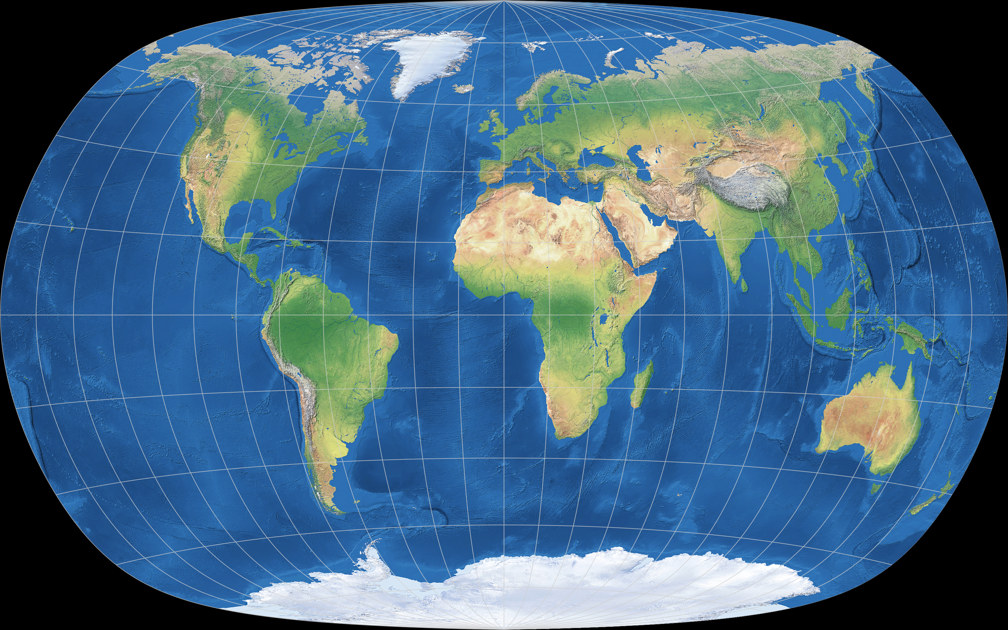

Contour of Györffy F (red) layered over the contour

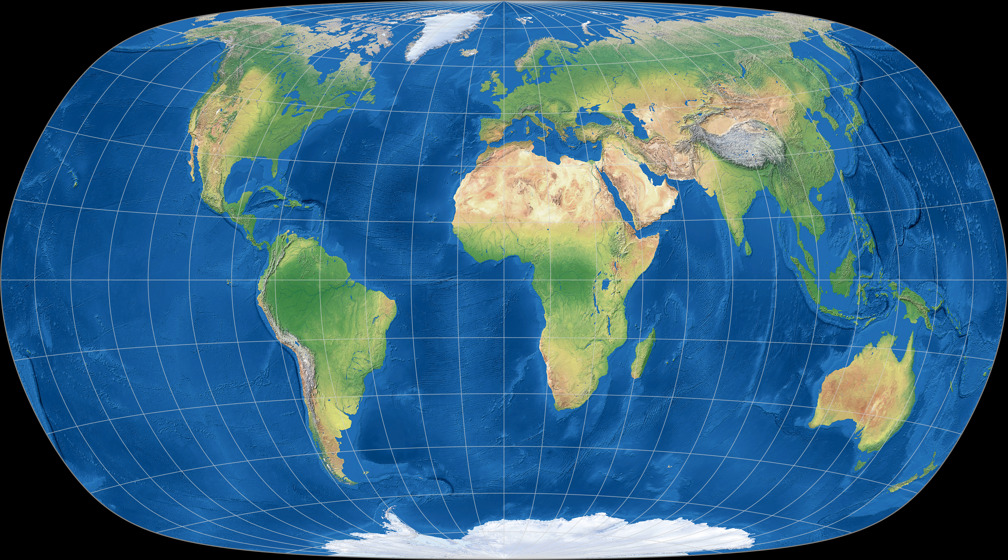

of the modified Canters W32 (blue)
But looking at a finished map using this variant, I felt that it could use some horizontal stretching, so the aspect ratio was set to 1:1.8 (= Böhm notation 90-160-60-35-180). I’ve got no way of knowing, but I’m fairly certain this worsens the overall distortion values. Nonetheless – to me, it looked better.

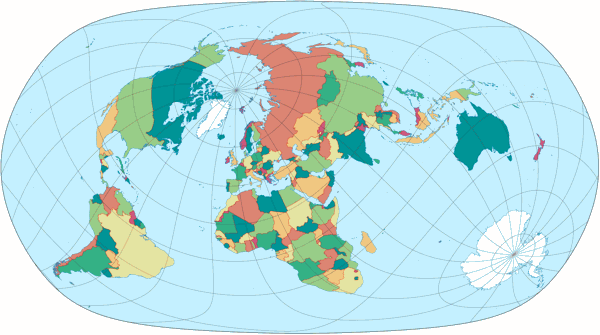

As promised in the intro to the calendar, I will show each projection in additional representations. Here’s the “OGABO” version:
I think it works quite well, even though I myself have repeatedly said that
lenticular projections with their curved parallels are best always shown with graticule lines.
However, I have to say: The inflation of Greenland is in this representation much more
striking to me than on the physical or political map of the calendar. Here,
it’s almost a bit too much for my taste.

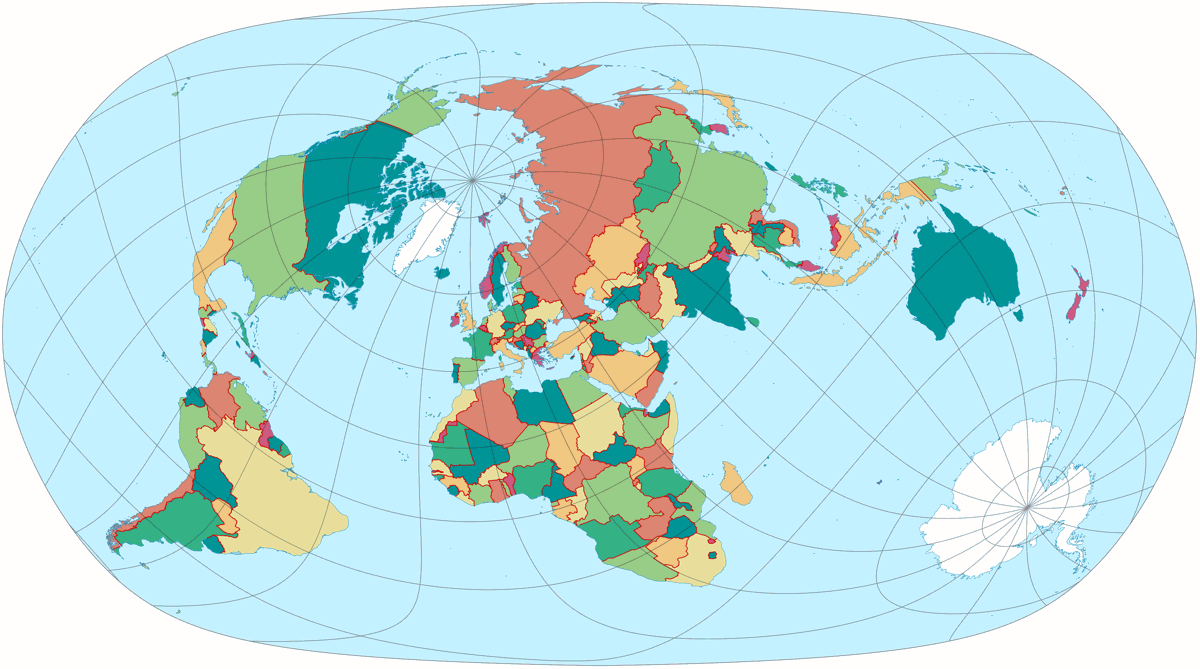

The plagal aspect, on the other hand, pleases me without restrictions:
A few days ago, I promised that I’d again talk about pacific-centered maps here.
Sorry, but I have postponed that to February.
So long!
References / Footnotes
- ↑ For more information about “Umbeziffern”, Wagner’s transformation method, read Das Umbeziffern – The Wagner Transformation Method, or the brief explanation in this blogpost or the notes at the Wagner Variations Generator (WVG-7).
